Infrastructuur

Database en nodes

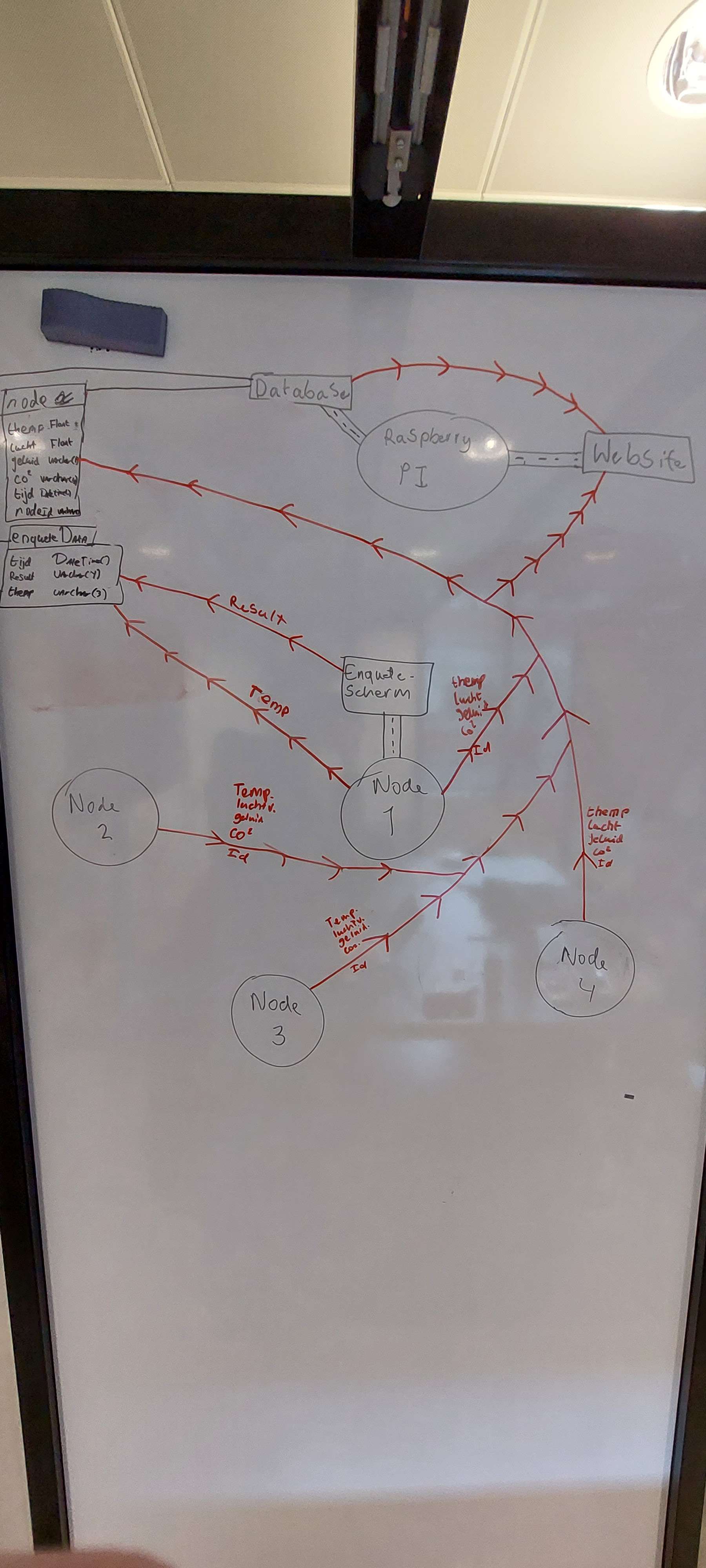

You can see that in the picture we've drew all the nodes and the tables for the database, every node has multiple sensors and only node 1 has an extra screen. The database is used to store all the data that the nodes collect. Here is a picture that

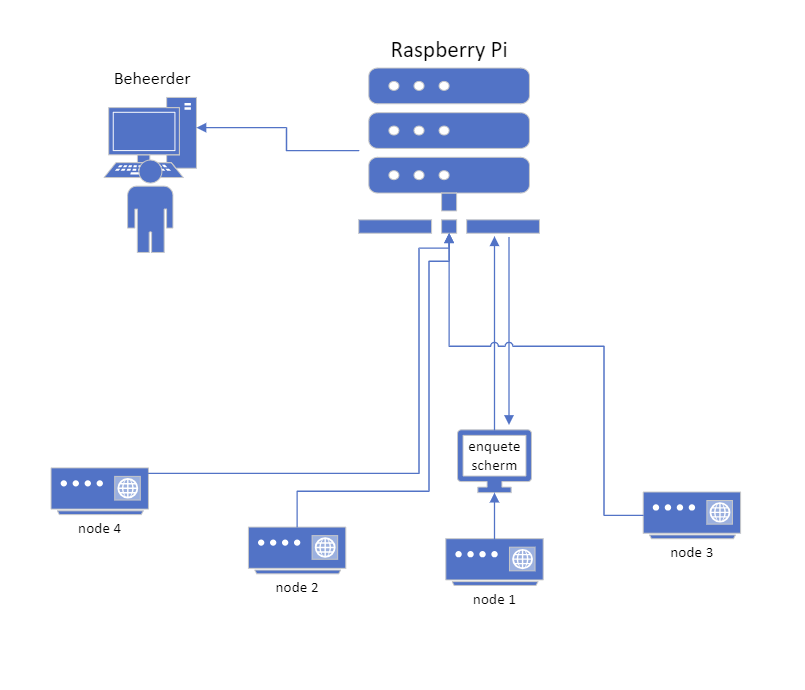

shows what the nodes do: We also have this sketch digitalised in a simpler way:

You can see that every node measures:

• Temperature
• Humidity
• CO2 level
• Sound level

The nodes are connected to the database using post requests, every node sends a post request to the database with the sensordata it has collected. The database then stores this data in the right table. This is the table called "Node" in the first picture.
